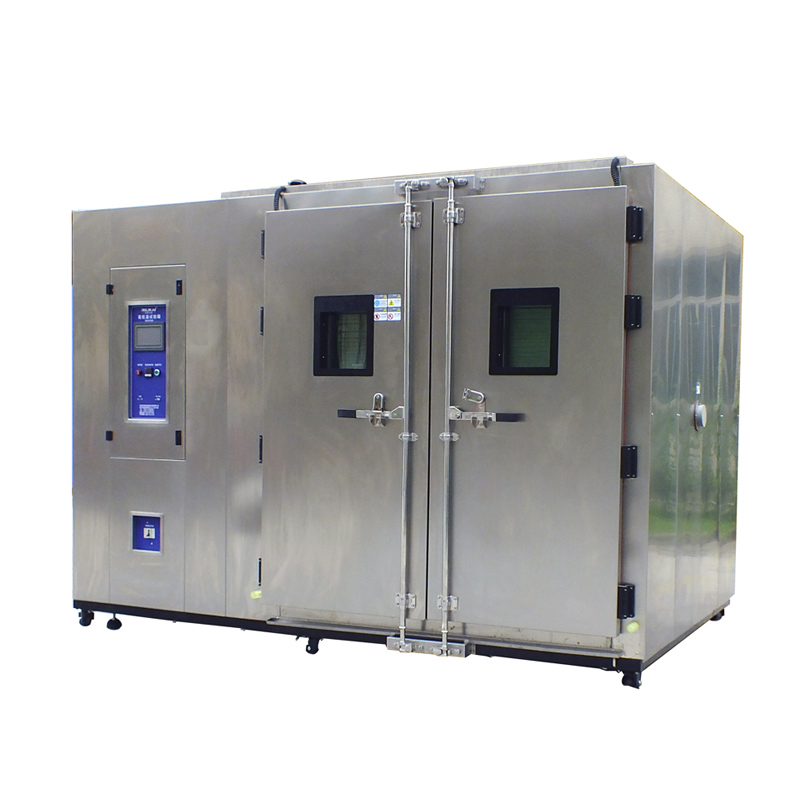

What is a high-temperature aging chamber?

A High Temperature Aging Chamber, also known as a high temperature test chamber, is a laboratory device designed to simulate high-temperature environmental conditions. It is widely used in industries such as electronics, electrical appliances, plastics, chemicals, and automotive engineering to evaluate the performance, reliability, and service life of products under high-temperature conditions.With the continuous advancement of science and technology in China, the application of high temperature aging chambers has become increasingly widespread across various fields, and market demand has been rising year by year. This article will introduce the equipment from the following aspects, hoping to provide useful insights and assistance.

Classification and Characteristics of High Temperature Aging Chambers

A high temperature aging chamber, also known as a burn-in room or aging room, is a type of equipment used to simulate a high-temperature constant-temperature and harsh testing environment for various electronic products. According to different user testing requirements and installation sites, high temperature aging chambers can be mainly divided into the following types:

1. Integral Aging Room

Structure: It consists of an outdoor unit and an indoor unit, including a control system, dehumidifier, air conditioning unit, etc. All components are connected through pipelines.

Advantages: Its main advantage lies in its integrity and comprehensiveness. The structural design is stable, ensuring long-term operational reliability.

Disadvantages: The cost is relatively high, and installation and maintenance expenses are also significant. In addition, it is fixed in position and not easily movable.

2. Room-Partitioned Aging Chamber

Design: The room size can be customized according to customer requirements.

Configuration: Equipped with insulated sliding doors or double insulated swing doors, and observation windows can be installed for easy internal monitoring.

Features: It has low requirements for product types and trolley design, provides a large operating space, has a simple structure, and relatively low cost.

3. Isolated Aging Chamber

Design: The room size is also customized according to customer requirements.

Configuration: The test area is equipped with sliding doors and large-view glass observation windows, and power sockets are fixed in convenient operating positions.

Features: Operators do not need to enter the test area to load or unload products, which avoids the impact of high-temperature environments on personnel, while also saving energy.

4. Mobile Aging Chamber

Processing and Installation: It can be manufactured as a complete unit (or assembled on-site if the size is too large). The trolley dimensions are also customized according to customer requirements.

Application Scenarios: Suitable for small production volumes or small-batch testing in R&D environments.

Features: It is similar to the integral aging chamber in other aspects but occupies a smaller footprint, can be relocated at any time, and offers high flexibility.

Characteristics of High Temperature Aging Chambers

Accurate and highly precise temperature control

Due to the unique air duct system design and electrical control system, the chamber can maintain excellent temperature uniformity throughout the entire room, significantly outperforming similar products.

Wide and continuously adjustable temperature range

The set temperature can be freely adjusted within the range of ambient +5°C to 80°C. If special requirements are needed, higher-temperature designs can also be customized.

Complete system protection functions

The system is equipped with comprehensive safety protection features, ensuring long-term, stable, and failure-free operation.

Rational structural design with reliable components

The test chamber is designed with well-matched functional components to meet long-term, stable, safe, and reliable production requirements. It is suitable for processing and manufacturing applications in the above fields, offering easy operation, maintenance convenience, long service life, attractive appearance, and a user-friendly interface that makes operation and monitoring simple and intuitive.

High-quality components from well-known brands

Key components are selected from reputable domestic and international manufacturers to ensure overall quality and performance of the equipment.

Aesthetic design and convenient installation

The equipment features an attractive appearance, easy construction, and a short installation period.

Applications of High Temperature Aging Chambers in Different Industries2

Electronics Industry

In the electronics industry, aging chambers are mainly used for long-term stability testing of electronic products. By simulating operating conditions under different environmental scenarios, they help evaluate product weather resistance, aging resistance, and reliability, providing important data for product design and improvement.

Automotive Industry

In the automotive sector, aging chambers are used to simulate vehicle operating conditions under various climatic environments, such as high temperature, low temperature, and humidity. Through long-term stability testing of automotive components and complete vehicles, their performance and reliability can be assessed, providing strong support for improving product quality.

Rubber and Plastics Industry

Rubber and plastic products are prone to aging over time due to environmental factors such as temperature and humidity. Aging chambers can simulate these conditions to conduct aging tests on rubber and plastic materials, evaluating their aging resistance and service life.

New Energy Industry

In the new energy vehicle sector, lithium battery aging chambers provide essential testing support for battery research and mass production. Through long-term charge and discharge cycle testing, the stability and reliability of batteries can be verified, ensuring that electric vehicles maintain strong power performance and endurance capability under complex and changing driving conditions.

High Temperature Aging Chamber – Precautions for Use

Prohibition of hazardous test samples

Do not conduct testing or storage of flammable, explosive, or highly volatile substances.

Corrosive substances restriction

Testing or storage of corrosive material samples is strictly prohibited.

Biological samples restriction

Biological samples are not allowed for testing or storage in the aging chamber.

Strong electromagnetic emission sources restriction

Samples or devices that generate strong electromagnetic radiation must not be tested or stored.

5. Safety operating procedures for high temperature aging chambers

(1) Before use, proper preparation must be made. Operators must have a full understanding of equipment performance and be familiar with all safety precautions during operation.

(2) Before operation, the surrounding environment of the aging chamber and the location of power switches must be clearly understood.

(3) After each use, ensure that water, electricity, and gas safety conditions are properly checked before leaving the site.

(4) Fire extinguishers or sand must be prepared and placed in visible and easily accessible locations. Fire hydrants for emergency use should also be available.

6. Fire and electrical safety precautions

(1) Before using electrical power equipment, check whether switches, motors, and all mechanical components are properly installed.

(2) When starting and stopping operation, ensure that all switches are fully turned on or completely shut off.

(3) When replacing fuses, select the correct current rating; do not increase capacity arbitrarily or replace with copper wire.

(4) It is strictly prohibited to clean or wipe electrical switches, plugs, or components with wet hands, wet cloths, or metal-handled brushes to prevent electric shock.

(5) If any electrical equipment overheats, it must be stopped immediately.

(6) For electrical systems above 110V, all metal parts of the equipment must be properly grounded.

Significance of High Temperature Aging Chambers

High temperature aging chambers are core essential equipment for reliability verification of industrial products. Their importance lies in accelerating failure mechanisms to expose potential defects in advance, thereby screening out defective products before mass production, verifying product lifespan, and reducing after-sales risks.

Accelerated exposure of potential defects

Based on the Arrhenius law, high temperature is used to accelerate material aging, solder joint fatigue, and component degradation, compressing years of natural aging into a few days. This allows rapid detection of hidden failures that cannot be identified through conventional testing, such as cold solder joints, leakage currents, and structural stress issues.

Efficient batch quality screening

With large-volume capacity and strong load adaptability, the chamber supports simultaneous power-on aging of dozens or even hundreds of complete units or large assemblies. Its efficiency is far higher than that of small single-unit test chambers, making it a critical safeguard for eliminating early-life failures before products leave the production line.

Realistic operating condition simulation

The system supports a combination of constant temperature, load, and long-duration operation, accurately replicating the actual high-temperature working conditions of products. This ensures test data closely reflects real-world performance, providing reliable references for R&D optimization of heat dissipation structures, material selection, and lifespan prediction.

Significant reduction in overall cost

By intercepting defective products before shipment, it greatly reduces market return rates and after-sales claim costs. At the same time, it shortens product development cycles and helps avoid large-scale recalls caused by design defects, thereby enhancing brand reputation and market competitiveness.

In conclusion, the high temperature aging chamber is a highly important testing device. It simulates various environmental factors to evaluate product performance and reliability, helping enterprises better understand product behavior for improved R&D and quality control.We sincerely welcome and invite you to contact us at any time via message or direct inquiry. This will allow us to better understand your specific requirements and provide you with more detailed and comprehensive product information and technical support, ensuring you receive the assistance you need.
